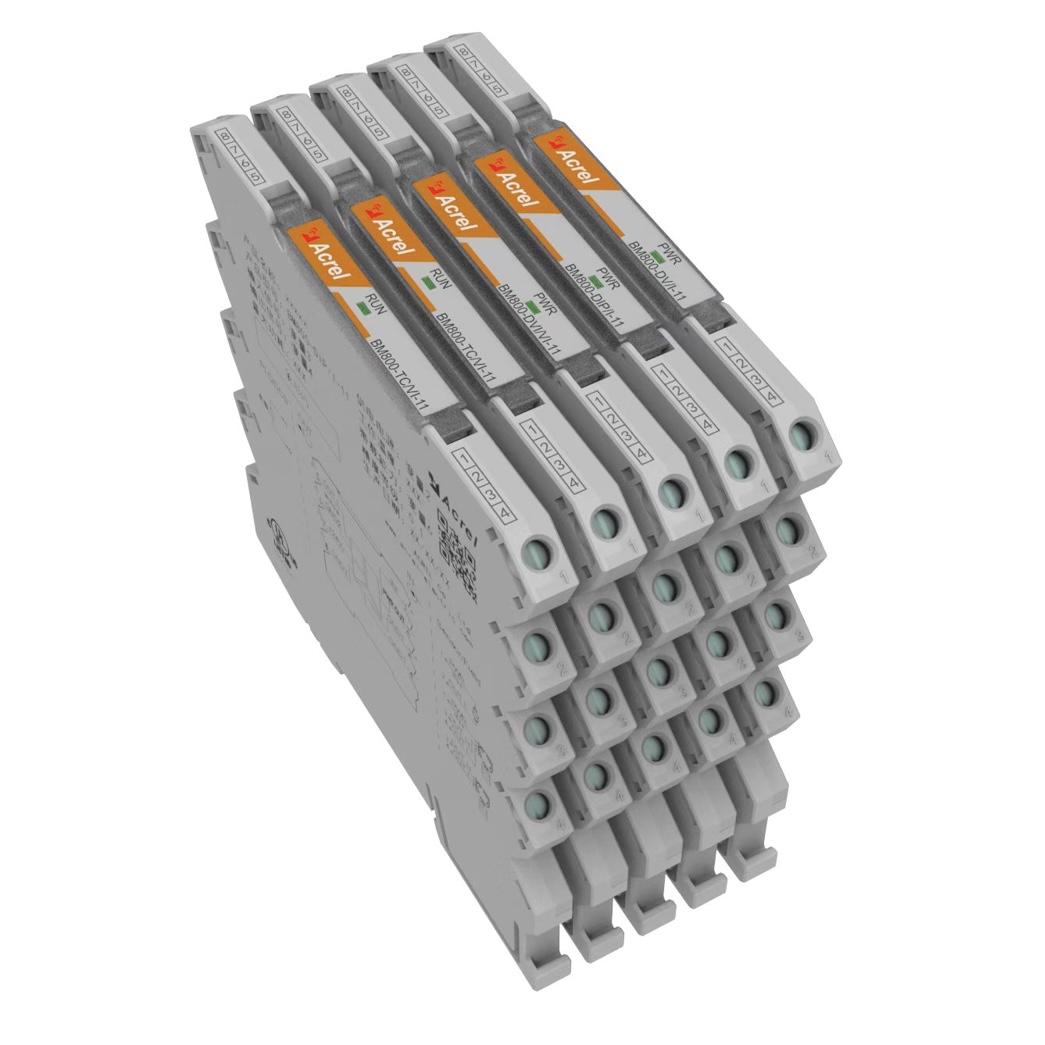

BM800 6.2 มม. เครื่องปรับสัญญาณสวิตช์ DIP บางเฉียบสำหรับ PLC

M odel

BM800-DIP/I-11

BM800-DV/I-11

BM800-DVI/VI-11

C hannel T ype

1 Input 1 Output

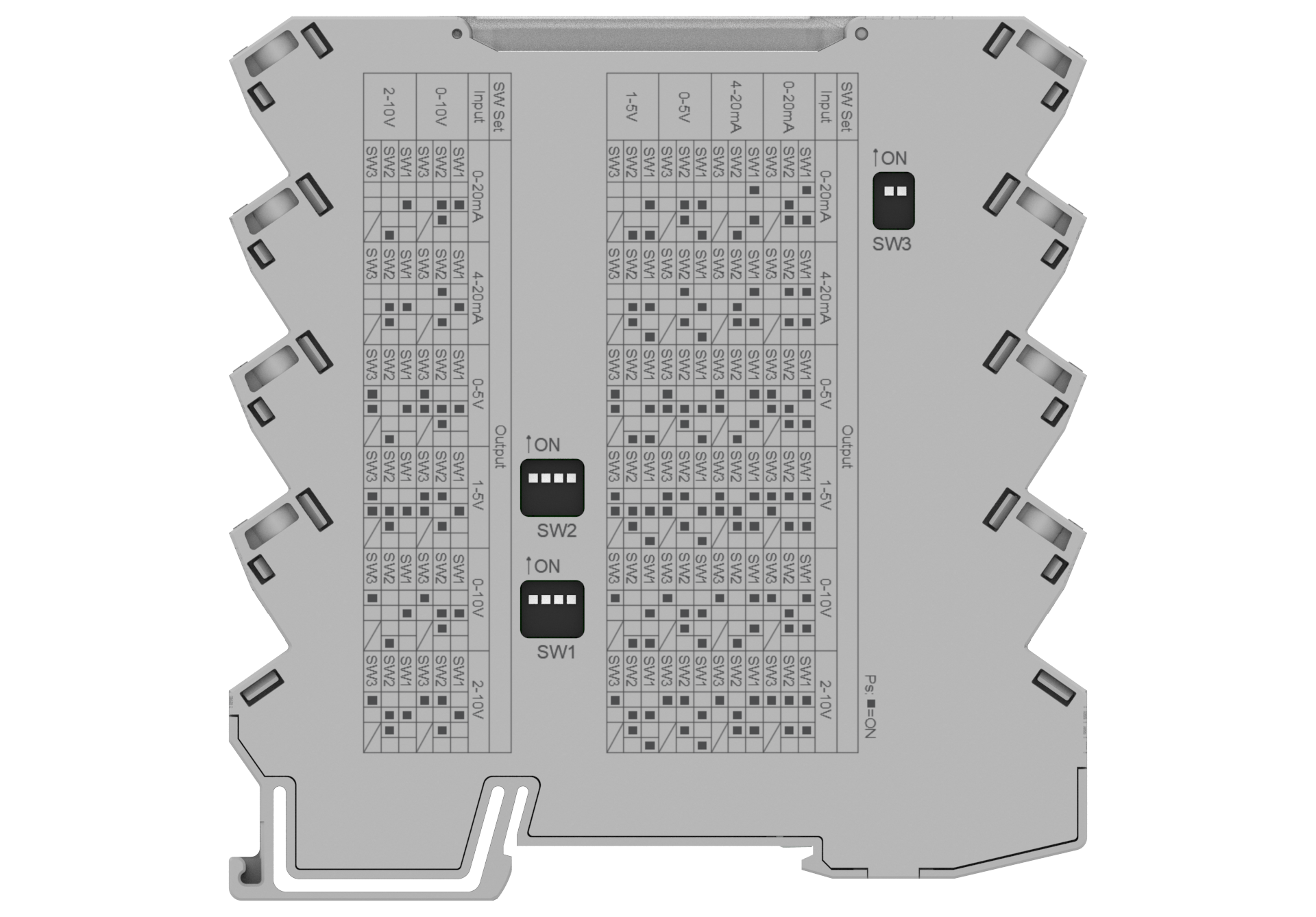

DIP Switch

Fixed

DIP

Input S ignal

0/4~20mA （ Two-wire and three-wire transmitters, current source ）

0/1~5V,0/2~10V

0~20mA,4~20mA,

0~5V,1~5V,0~10V,2~10V (Switchable)

I nput I mpedence

Current input: 100Ω; Voltage input: 50K (0-5V), 100K (0-10V).

A ccuracy

0.1%

O utput S ignal

DC 0/4~20mA

DC 0/4~20mA,DC 0/1 ～ 5V,

DC 0/2 ～ 10V (Switchable)

P ower D issipation

≤2W

D istributing

Distribution voltage at 20 mA: 20V

/

Capability

DC 0 / 4 ~ 20 mA; load resistance of 550 Ω

DC 0-5 V / 1~5V; load resistance: 330K Ω

DC 0~10V / 2~10V; load resistance: 500K Ω

O utput R ipple

≤100mVpp ( Load Resistance 100Ω)

Temperature Drift

50ppm/℃

R esponse T ime

Reaches 90% of the final value within 5ms

Power Supply Voltage

24V DC

T emperature

--20℃ ~   60℃ (storage temperature: -40℃ ~   80℃)

I nsulation S trength

The insulation voltage between any two groups of input, power supply, and output terminals is ≥1500V AC;

(Insulation resistance ≥100MΩ)

L evels of P rotection

IP20

W eight

60g

EMC

IEC61000-6-2 ； IEC61000-6-4

D imension

6.2mm *97mm*100mm
